FK-6 Options
- Automatic Start

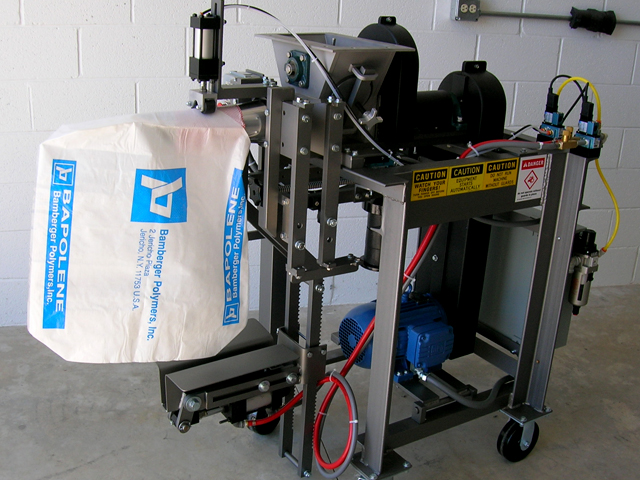

- Pneumatic Bag Clamp
- Automatic Bag Discharge

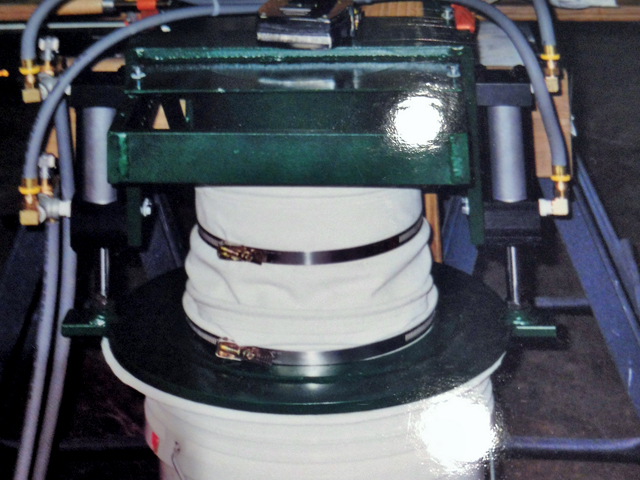

- Drum & Pail Filling Attachments
- Hard Facing for Filling Screw

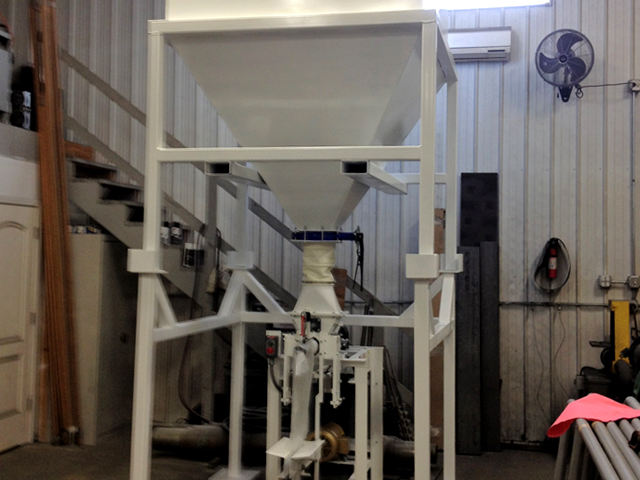

- Stainless Steel Facings

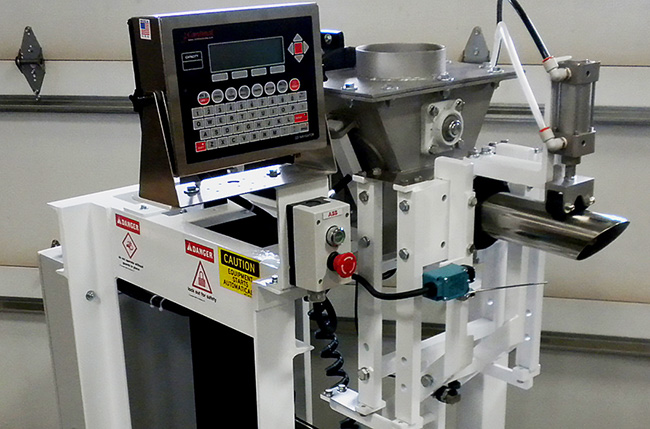

- Electronic Scale
- Variable Speed Drive
- Distinctive Finishes Available

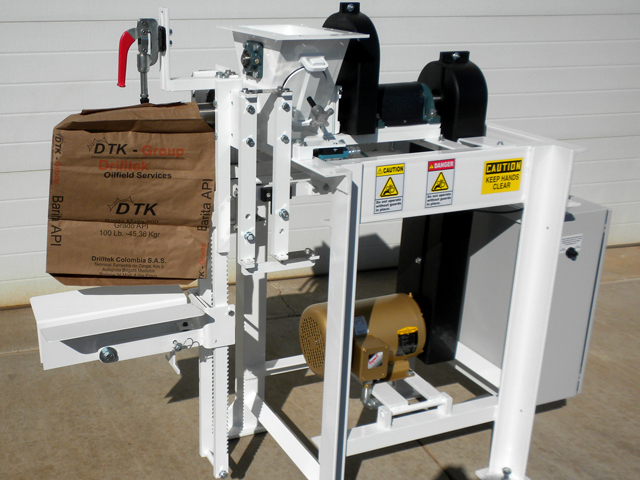

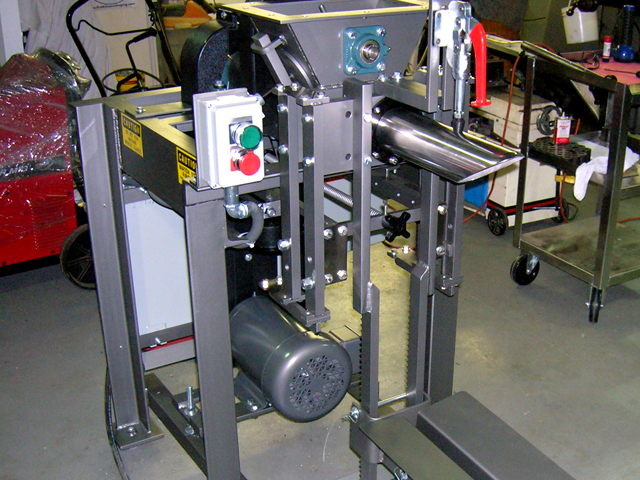

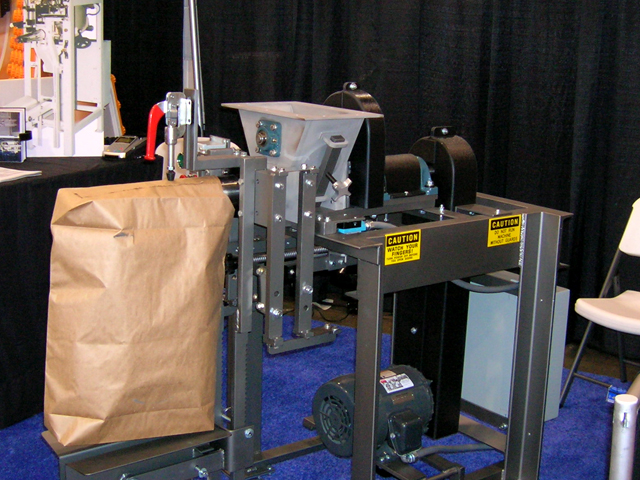

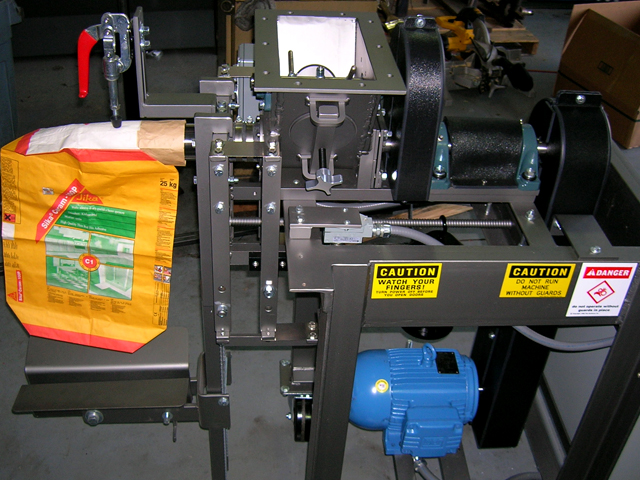

A simultaneous fill and gross weighing machine, the FKA-6 valve bag filler is versatile, economical and easy to operate in a proven, dependable design.

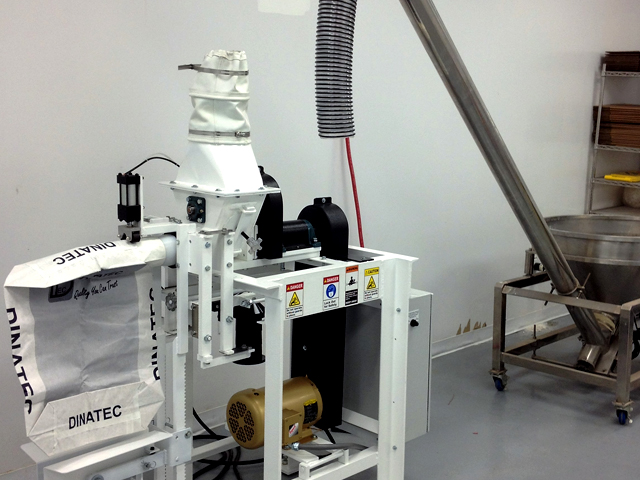

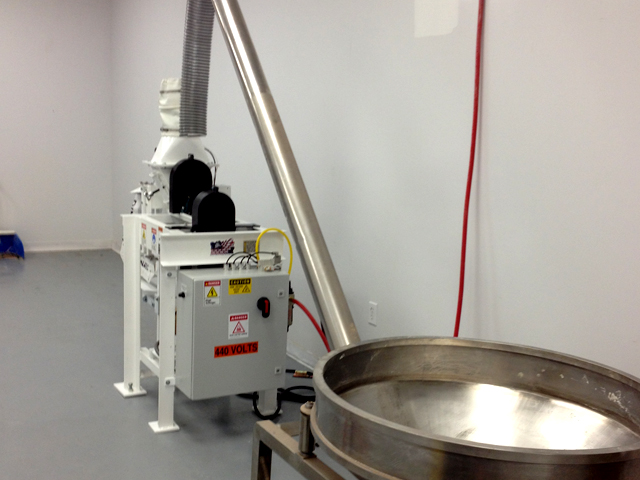

This bagger is gravity fed from your product supply bin or blender. Product entering the bagger passes through the agitator section and into the auger which conveys the product into the bag, drum or pail. When the product reaches the preset weight, the bagger will automatically stop the flow of product.
Motor & Controls

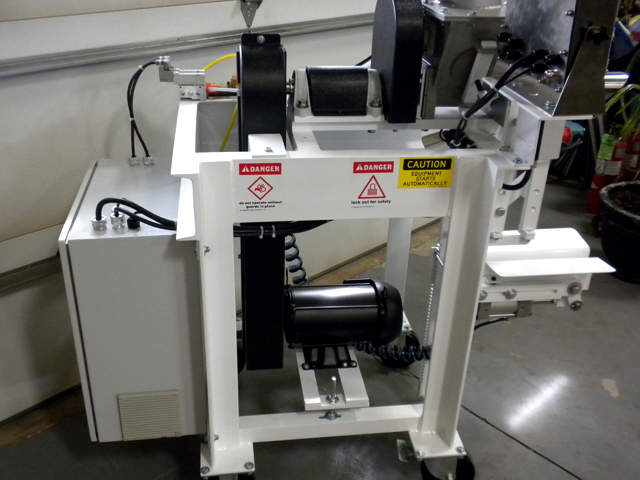

The FK-6 uses a heavy-duty 3 HP TEFC drive motor (5 HP Optional). The motor controls are mounted in a NEMA 12 enclosure at the rear of the bagger. The controls include a transformer for 120v/1ph power to the operator controls. All wiring and components are NEMA 12 rated.
Scale & Weighing Mechanism
The weighing portion of the bagger, which includes the fill spout and bag support, is supported by flexure plates. The standard mechanical scale is a rugged, single-beam design using two inverted pivots. The bag weight can be adjusted by turning the counterweight support screw located at the front of the bagger. A sliding counterweight type fine weight adjustment is within easy reach of the operator.
Specs
- Weight: Approximately 850lbs
- Height: 51¼"
- Width 28"
- Depth: 62"
- Motor: 3HP/5HP Three Phase
Features
- Heavy-duty construction for long life with low maintenance
- Compact size and low overall height permit installation under blenders and in low headroom installations
- Versatile hopper design and an assortment of filling screw options will handle a wide range of products
- Agitator assembly in product hopper to prevent bridging and will maintain continuous feed to auger screw
- Fills valve bags as well as open-top bags, drums and pails
- Reverse cycle at the end of bag fill to stop product flow while enabling more accurate weights and cleaner filling
